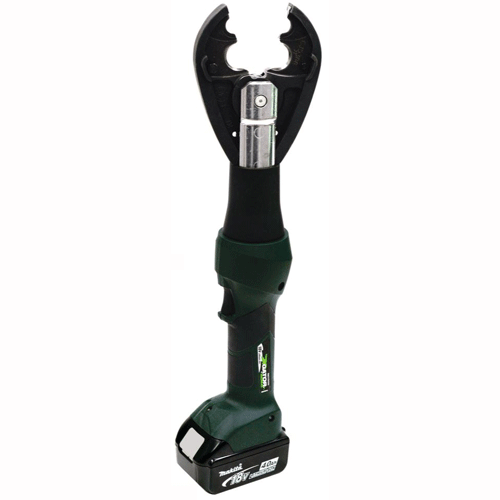

GREENLEE 6 TON IN-LINE CRIMPER
Accepts Greenlee KD6 dies or Industry Standard "W" Style Dies.
Includes CJD30 Jaw, 120V Charger, Two 4.0Ah Batteries
Intelli-CRIMP® Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications.
- One trigger controls all tool functions
- Crimping head rotates 350°
- Patented spring pin jaw engagement
- LED work light illuminates dark work areas
- LED display with real time PSI reading
- Bluetooth® enabled
SPECIFICATIONS
- Crimping Force: 6 Ton (54kN)
- Length: 14-3/4" (375mm) without head or battery
- Width: 4" (108mm)
- Weight: 6.6 lbs (3kg)
- Battery: 18V 4.0Ah Li-ion
CAPACITY
- 5/8" Service Entrance Connectors: 10-1/0 AWG
- .840 Service Entrance Connectors: 1/0-4/0 AWG
- Aluminum “H” Taps: 6-4/0 AWG
- Copper “H” Taps: 10-2 AWG
- Copper Tension Splices: 6-2/0 AWG
- Aluminum Tension Splices: 6-4/0 AWG
- One Piece ACSR Tension Splices: 4-1/0 AWG
- Two Piece ACSR Tension Splices: 2 AWG-477 kcmil
- Aluminum Jumper Splices: 4 AWG-266.8 kcmil
- Stirrups: 2-4/0 AWG
- Aluminum Color-Coded Lugs and Splices: 8-4/0 AWG
